Top-Bottom Diagram

PARTS LIST / SENSOR XP12 / 120V

Sensor s12 120v Eng Spa

Sensor s12 120v Eng Spa

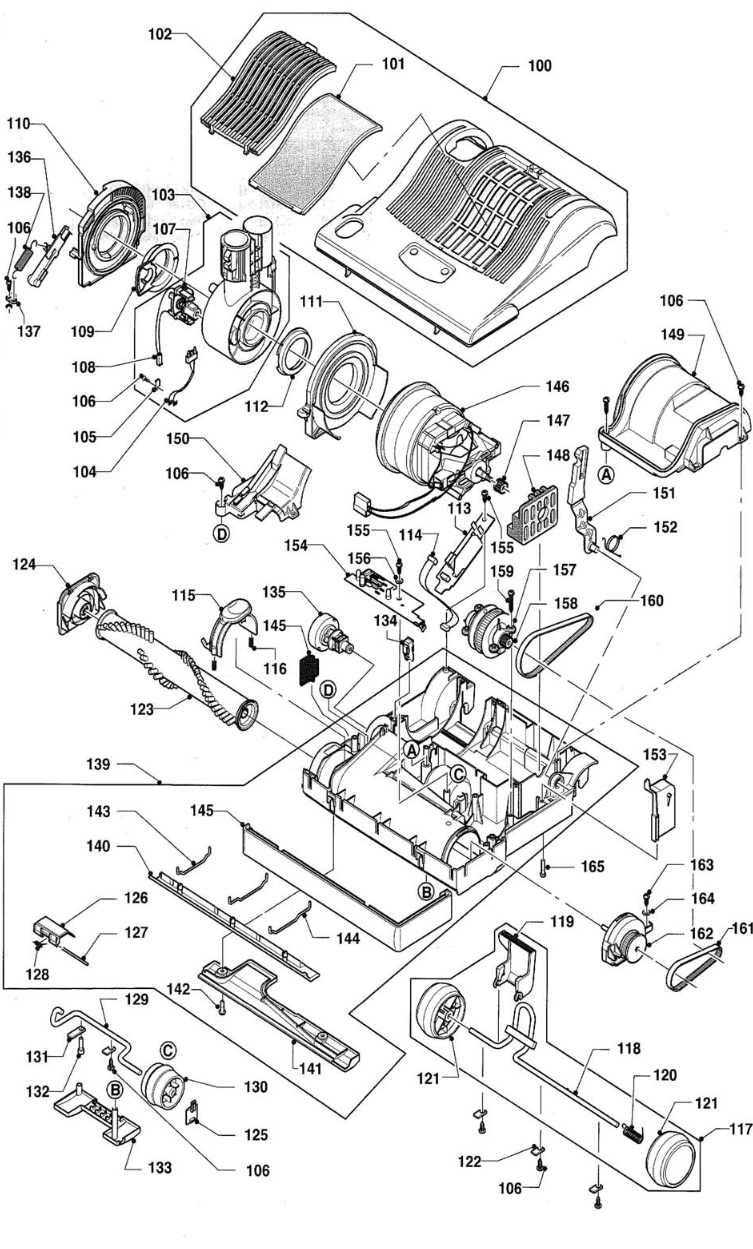

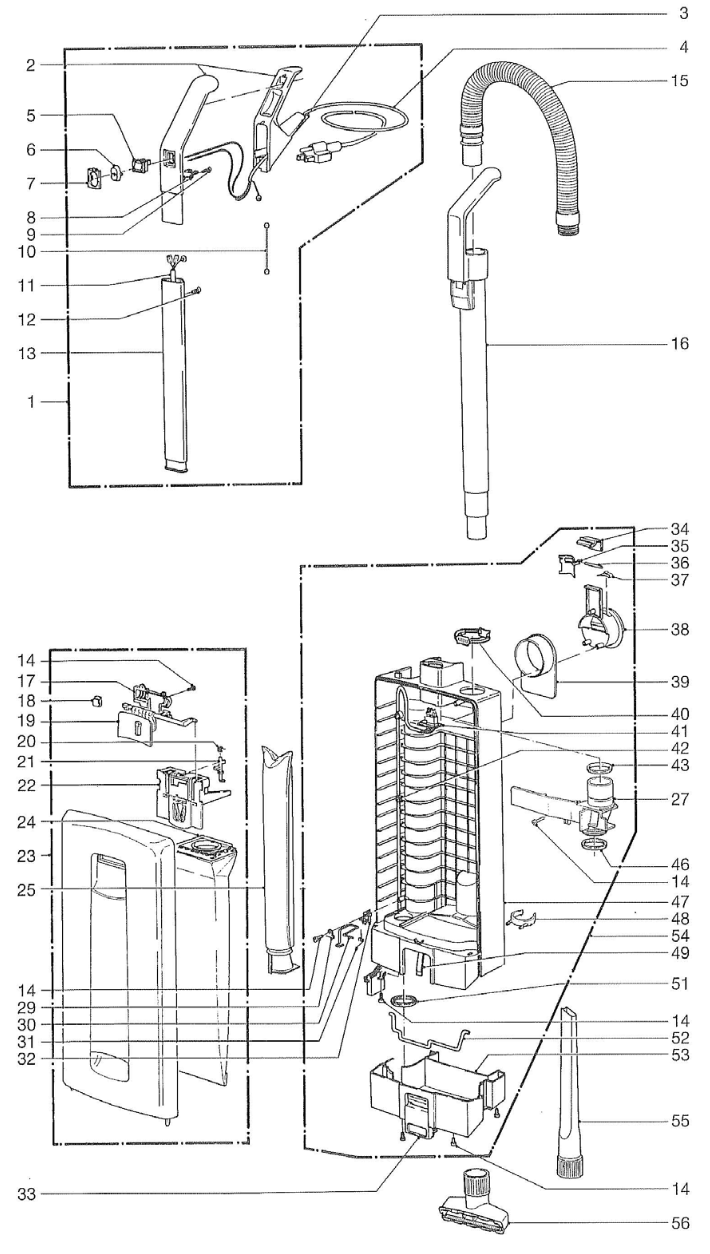

Exploded view diagram of a household appliance showing internal components and outer housing with labeled parts for assembly/repair.
POWER HEAD COVER S 12, CPL. EXHAUST FILTER EXHAUST FILTER COVER SWIVEL NECK ASSEMBLY MALE CONTACT HOLDER CABLE CLAMP SCREW M3, 9x13 DIN 7981 BYPASS VALVE INTERNAL CABLE SWIVEL NECK BEARING SWIVEL NECK SUPPORT R.H. SWIVEL NECK SUPPORT L.H. SWIVEL NECK BEARING PCB POWER SUPPLY INTERNAL CABLE, RIBBON BRUSH ROLLER RELEASE SPRING AXLE ASSEMBLY GRY AXLE FOOT PEDAL, ORANGE WHEEL RETURN SRPING SCREW M3, 9x13 DIN 7981 SCREW M3, 9x13 DIN 7981 SCREW M3, 9x13 DIN 7981 SCREW M3, 9x13 DIN 7981 SCREW M3, 9x13 DIN 7981 WHEEL, GRAY. CLAMP CONNECTING ROD AXLE WHEEL, GRAY. BRUSH ROLLER 12” BEARING BLK, RH SR12 BLU/GRY RUBBING PLATE ACCESS DOOR ACCESS DOOR AXLE ACCESS DOOR SPRING PILE ADJUSTMENT AXLE PILE ADJUSTMENT WHEEL GRY WHEEL, GRAY. AXLE CLAMP SCREW M4 x 16, DIN 7985 COVER THRUST MEMBER PILE ADJUSTMENT KNOB THRUST MEMBER CLAMP SPRING CHASIS SSRS 12, CPL BOTTOM PLATE,FRT,CLP,GRY, SR12 REAR BOTTOM PLATE SRS12, CPL SCR, M4 X 12 MM W/WASHER WIRE TIE, BOTTOM PLATE, OUTER WIRE TIE, BOTTOM PLATE, CENTER BUMPER GRY (2PC SR12) VACUUM MOTOR PULLEY 2MR RUBBER MOUNTING MOTOR COVER COVER FOR AIR CHANNEL CARBON BRUSH SET 100-120V BUMPER GRY (2PC SR12) SUPPORT LEVER SUPPORT SPRING MOTOR PULLEY COVER COMPUTER CONTROLLER SCREW 2.9 x 13 WASHER 3.2 SENSOR X4 CPL MOTOR PULLEY SCREW M3.9 x 25 MM BELT 2MR-310-6 BELT HTD-II-6, 219 3M BEARING BLOCK L.H. CPL. SCREW C 3.9 x 16 DIN 7981 WASHER SCREW M4 X 30 SCREW 2.9 x 13

SCREW M3, 9x13 DIN 7981

SCREW M4 x 16, DIN 7985
